SIGMA - Gasketed Plate Heat Exchanger
| Suitable for cooling, heating, condensing, vaporizing and pasteurizing of pumpable fluids. |
| • |
Flow capacity 1 to 2.200 m3/h. |
| • |
Exchange area 0,03 up to 2240 m2 |
| • |
Plate materials: |
316, 316Ti, Titanium, SMO |
| |
|
Hastelloy, Titanium-Palladium |
| • |
Elastomeric gaskets for operating temperatures up to 170 °C and hard gaskets up to 250 °C. |
| • |
Speciality: SIGMACOAT- PTFE shielded gaskets for special applications |
|
 |
|
 |
| |
|
|
| |
|
|
| |

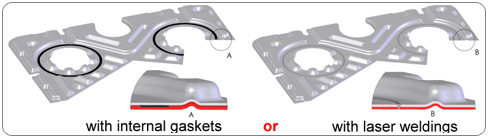

| SIGMAWIG - All Welded Compact Plate Heat Exchangers |
| For low and high temperatures, high pressures |
| • |
Gasket-free allows higher operating levels |
| • |
Only one material, TIG welding without filler |
| • |
High operating temperatures up to 250°C |
| • |
High operating pressures, 25 bar and more |
| • |
Compact design with high efficiency plates |
| • |
Experience with many thousand installations |
| • |
Wide range of types allows optimized choice |
| • |
Plate materials e.g. 304L, 904L, SMO, Titanium |
|
 |
|
|
| |
|
|
| |
| SIGMATHERM - Short-Time Heating / Pasteurizers |
| • Pasteurizers from 200 to 100.000 l/h for dairies, breweries, juice and soft drink industries, bioprocessing. |
|
| |
| SIGMATEC - Systems for Dealcoholization |
• Beer, wine, cider, for capacities 4 - 100 hi / h.
Continuous process to an alcohol content less than 0,1 %vol. |
|
| |
| |
